ESSENCE E-RAW SIGNATURE

Commute in style

ESSENCE Motorcycles

Electric motorcycles for petrolheads
At ESSENCE Motorcycles we build thrilling electric motorcycles merging tradition and innovation.
Concept e-raw signature is our ultimate vision in a real ride.

Our concepts e-raw are born at the intersection of mechanical and electrical universes in order to define a new motorcycling experience : intense and long lasting.

ESSENCE is not about a new energy, it is about a new paradigm.
In order to change paradigm, we went back to the very beginning, the essence of motorcycles, to take a new direction.
We merge motorcycling tradition and state-of-the-art technologies.
This is the way we build motorcycles.

Specifications

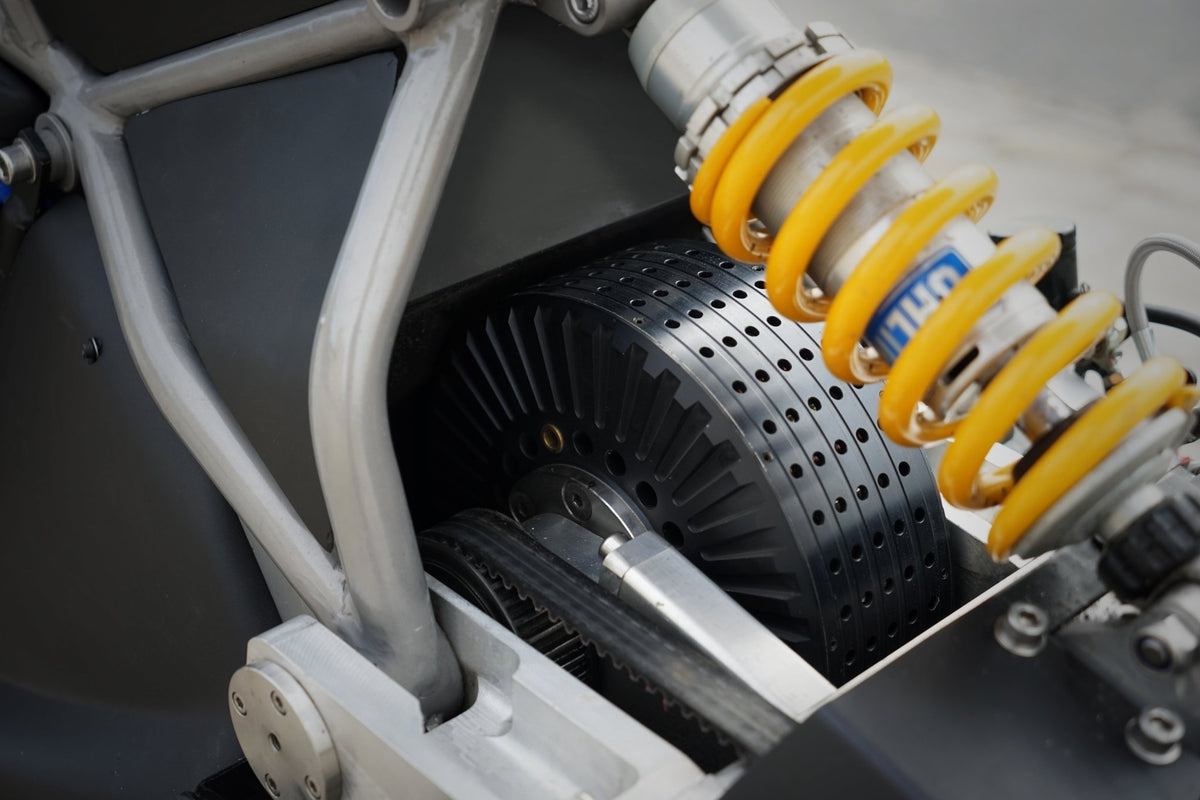

• Motor: 80 kW brushless synchronous motor
• Battery Pack Capacity: 11 kWh
• Cylinder Equivalent: 600cc power and more than 1000cc torque
• Max Power: 80 kW (109 cv)
• Max Torque: 210 Nm
• Gears: No gearbox - direct transmission

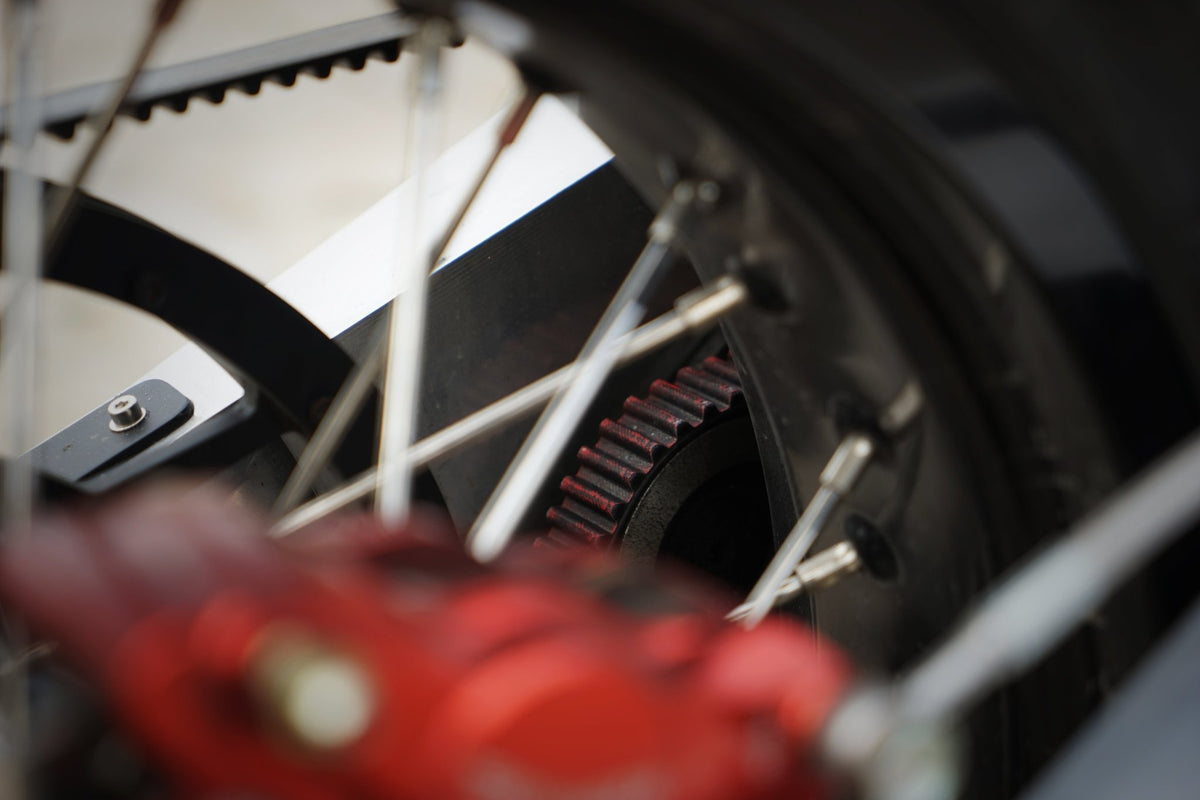

• Secondary Transmission: Carbon reinforced toothed belt

Chassis

• Frame: Steel tubular

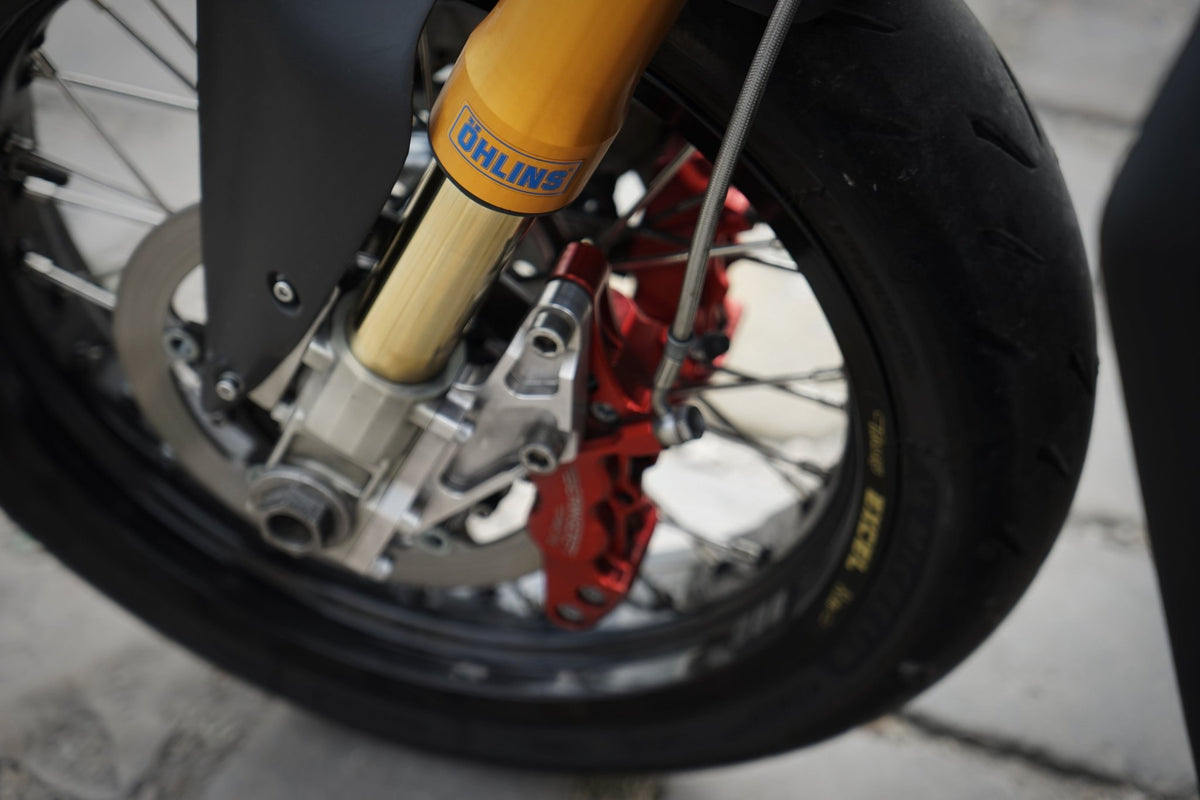

• Front Suspension (Travel): Öhlins inverted fork FG324, Ø 43 mm (120 mm)
• Front Settings: Preload, rebound and compression

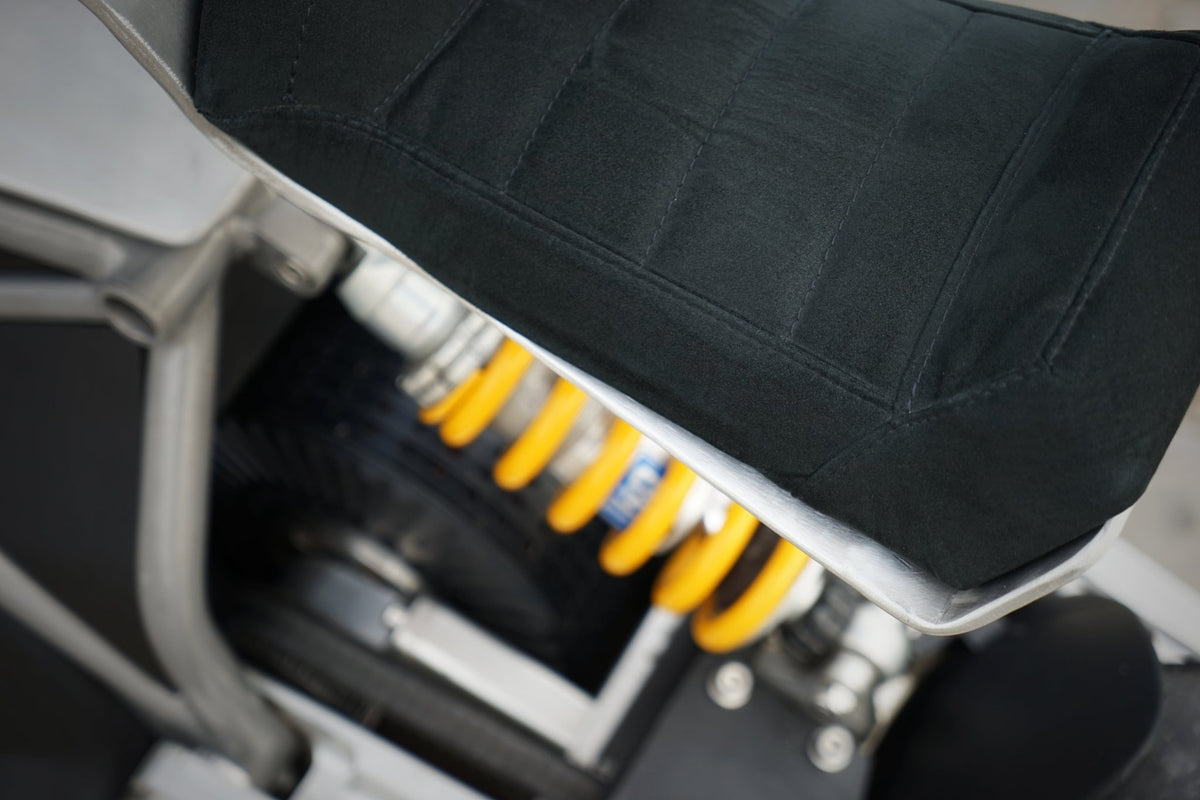

• Rear Suspension (Stroke/Travel): Öhlins mono shock absorber S46DR1, (58.5 mm/120 mm)
• Rear Settings: Preload and rebound
• Front Brake: 2 floating disks Ø 230 mm, 2 Beringer Aerotec 4 pistons radial calipers
• Rear Brake: 1 floating disk Ø 230 mm, Beringer Aerotec 2 pistons caliper
• Tires: 120/70x17 Front; 160/60x17 Rear
• Weight: 167 kg

Dimensions

• Length: 2040 mm
• Height: 1120 mm
• Wheelbase: 1442 mm
• Steering Head Angle/Caster Angle: 67° / 101.3 mm
• Seat Height: 902 mm
• Ground Clearance: 168 mm

Performance

• 0-100 km/h: < 3.5 s
• Max Speed: 150 km/h
• Range: 100-150 km
