S-ZERO Ultralight eVTOL

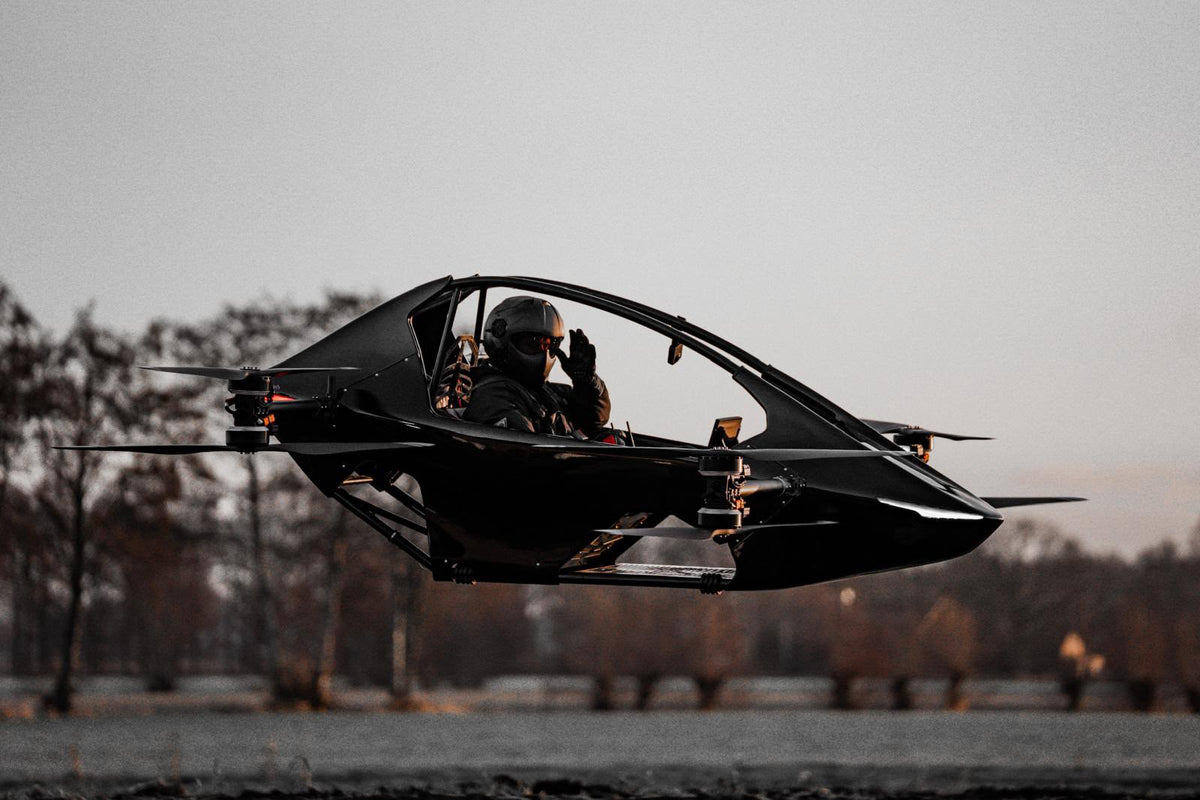

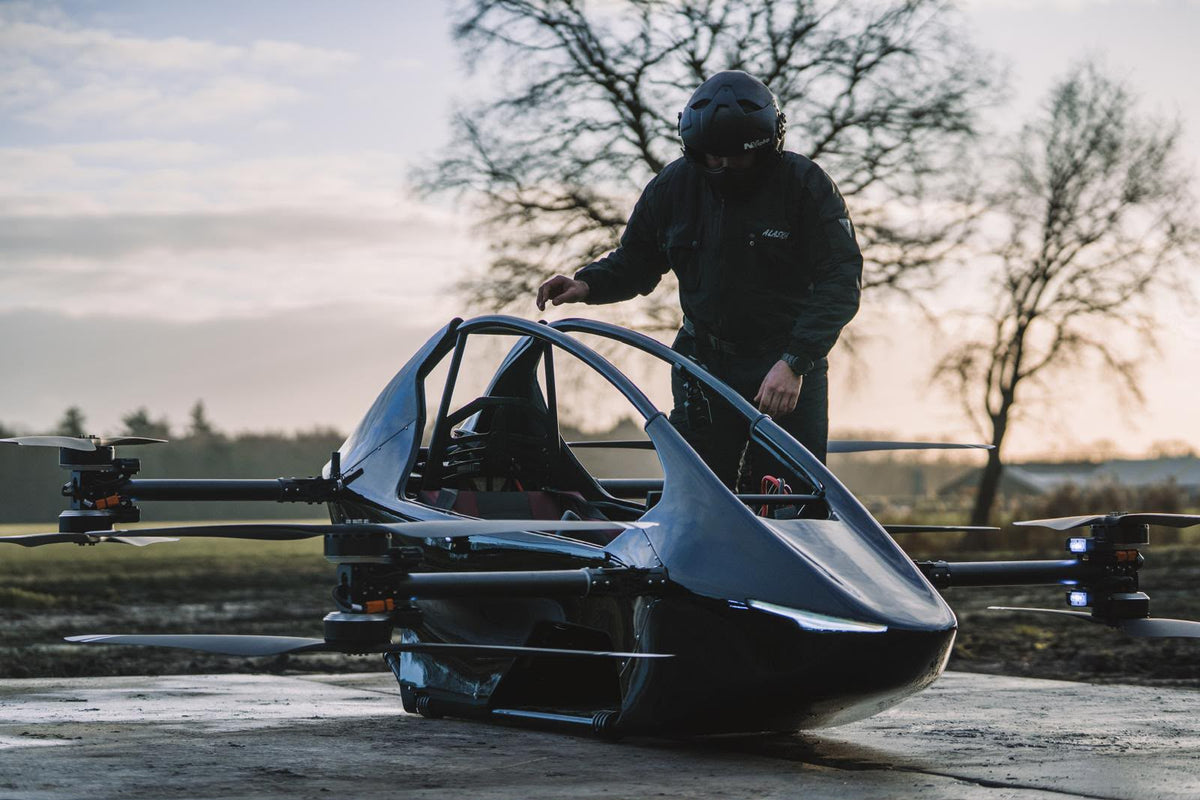

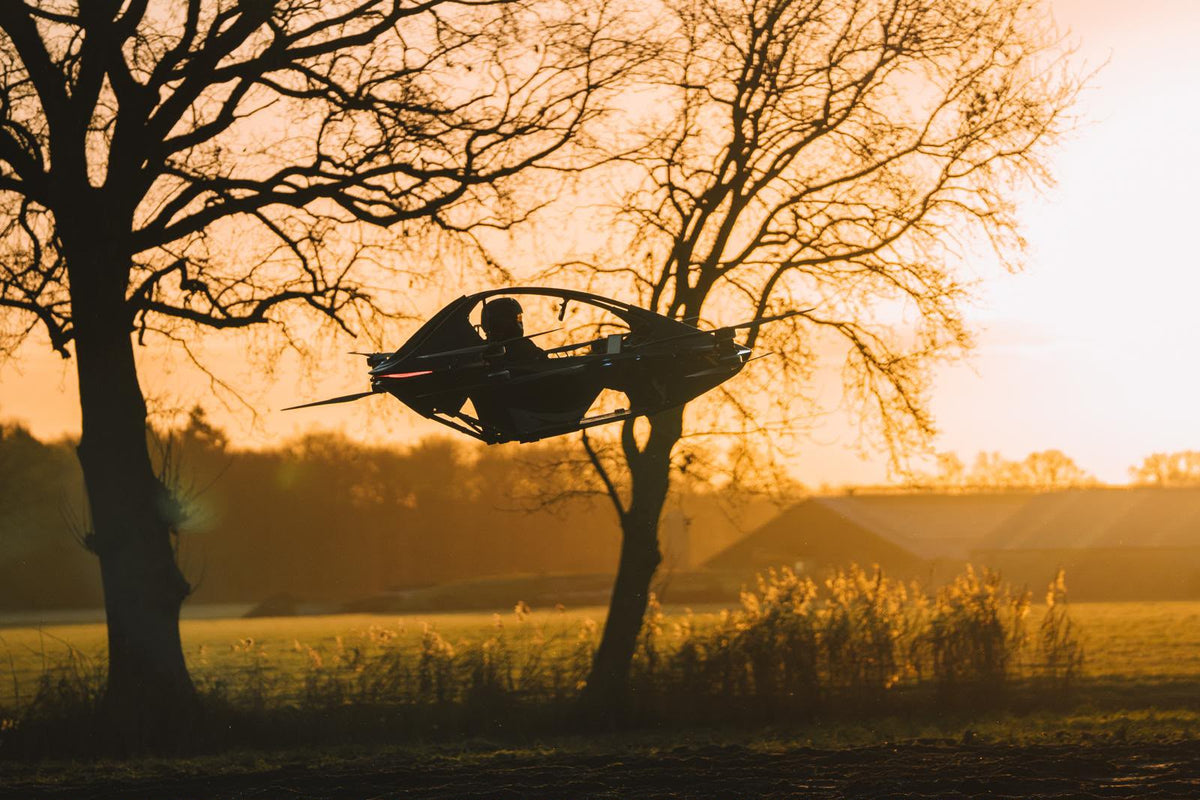

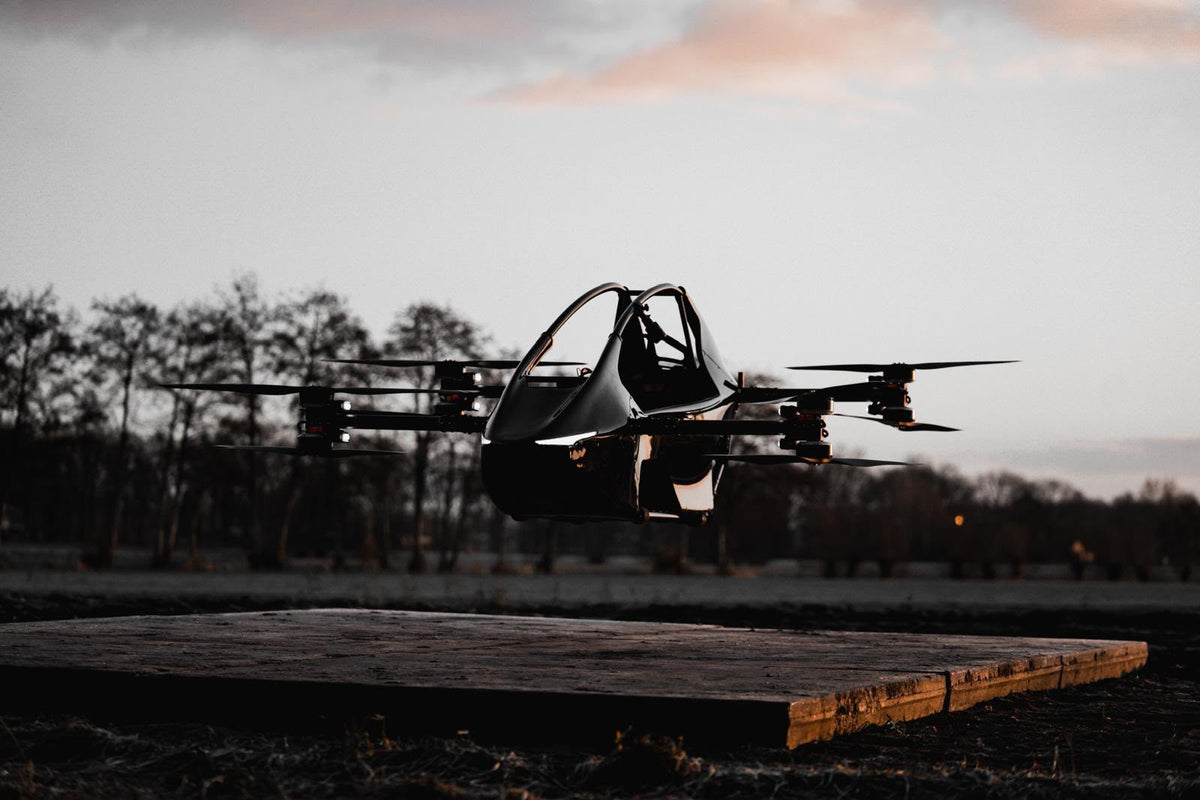

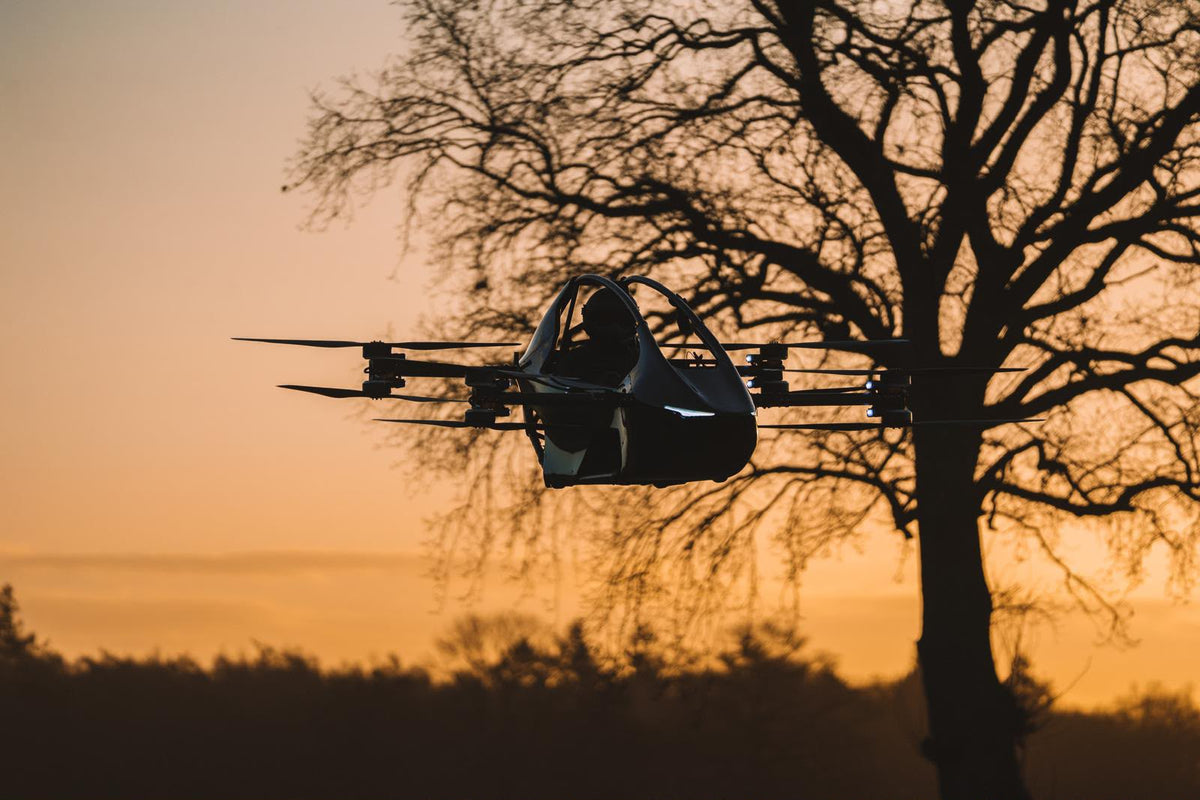

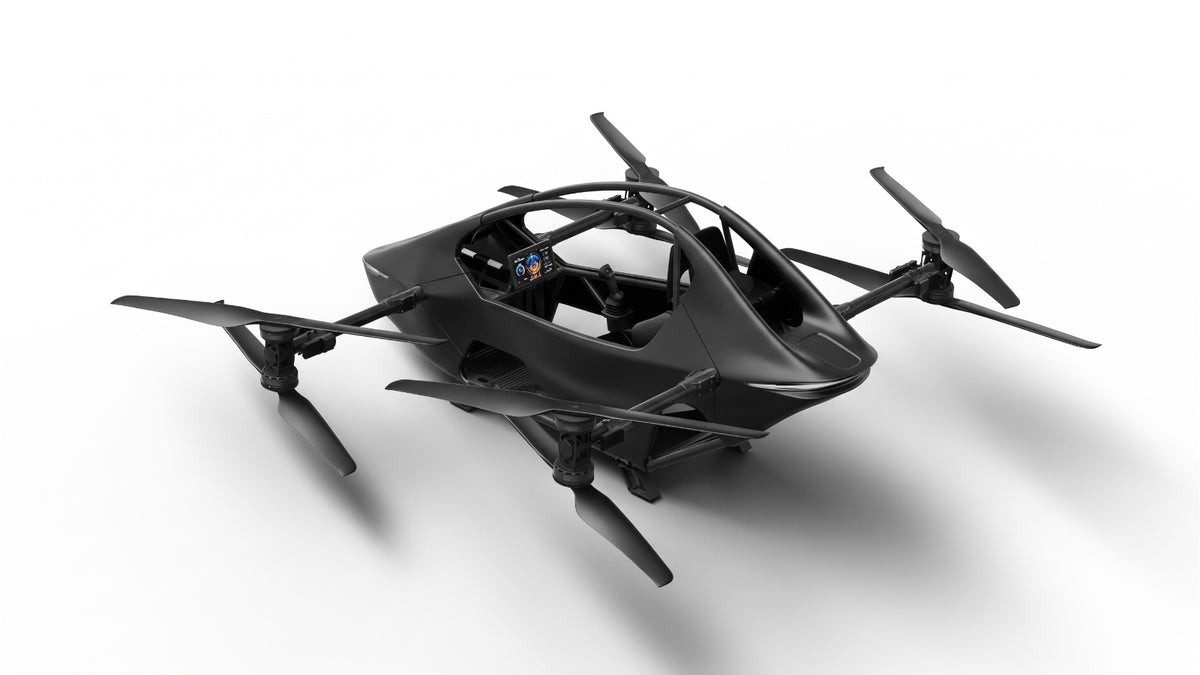

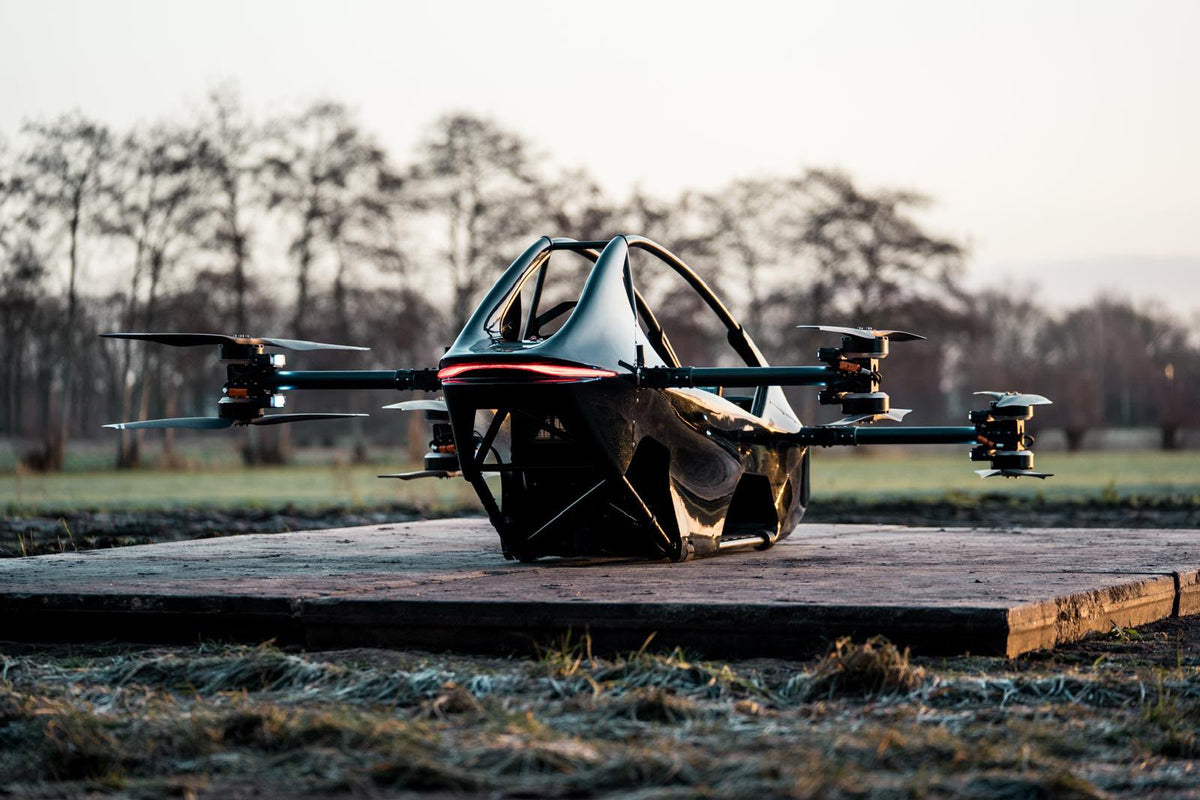

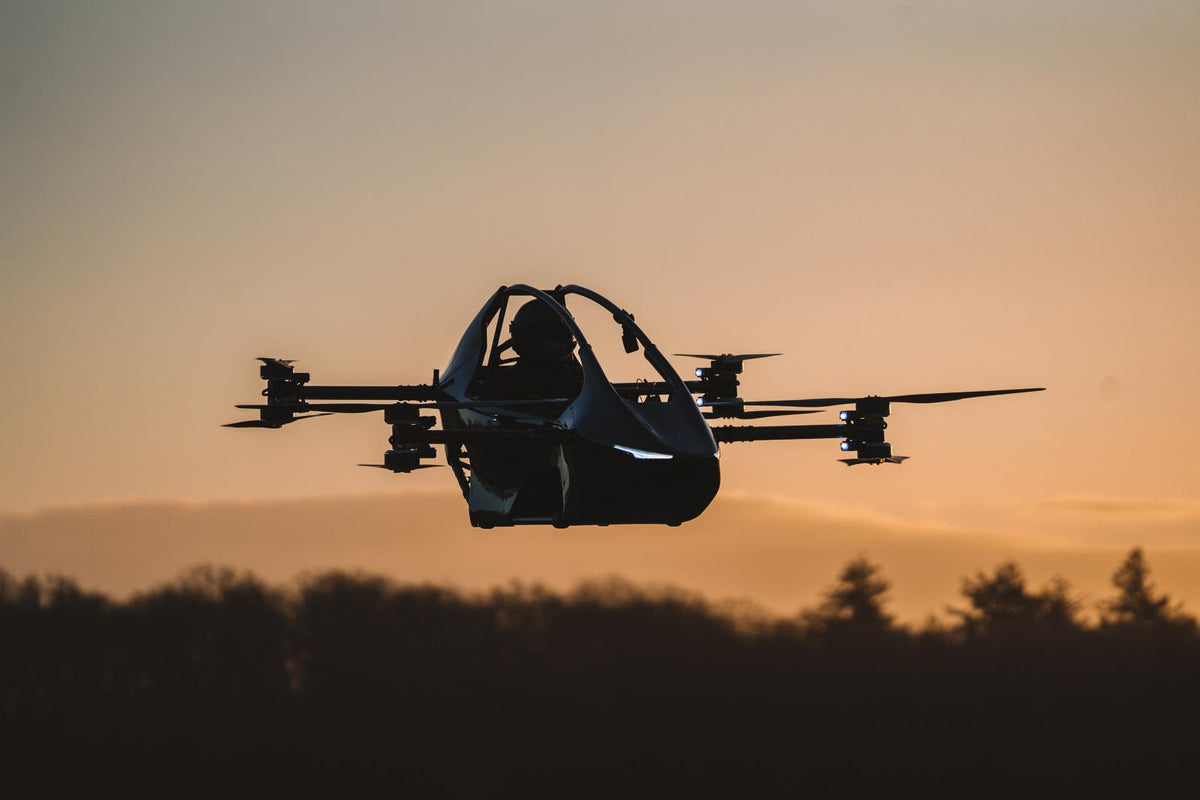

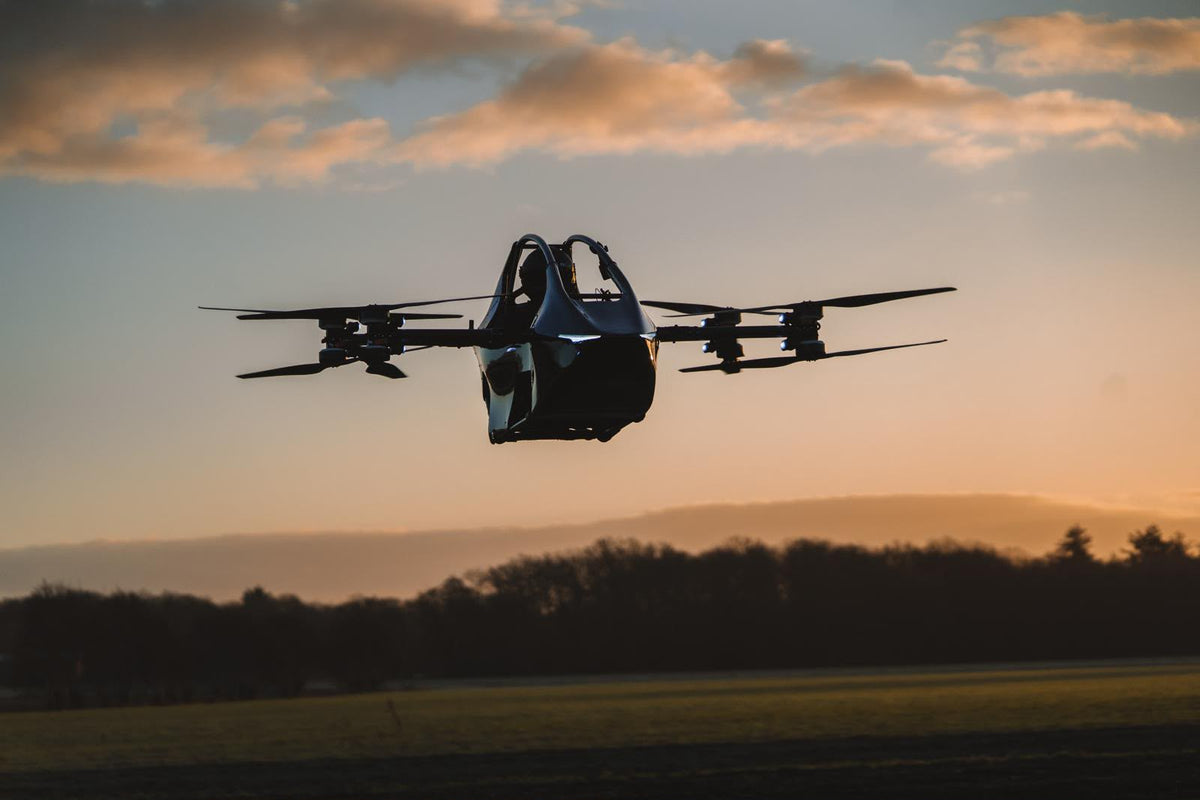

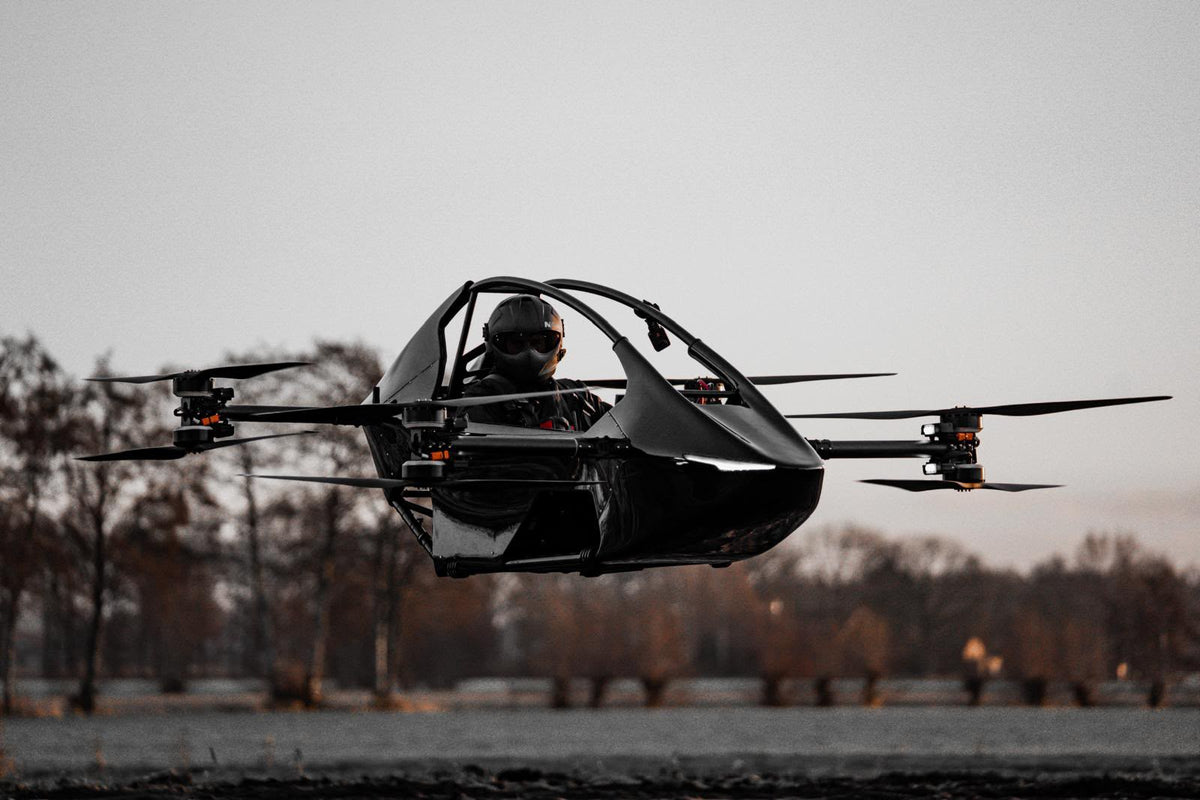

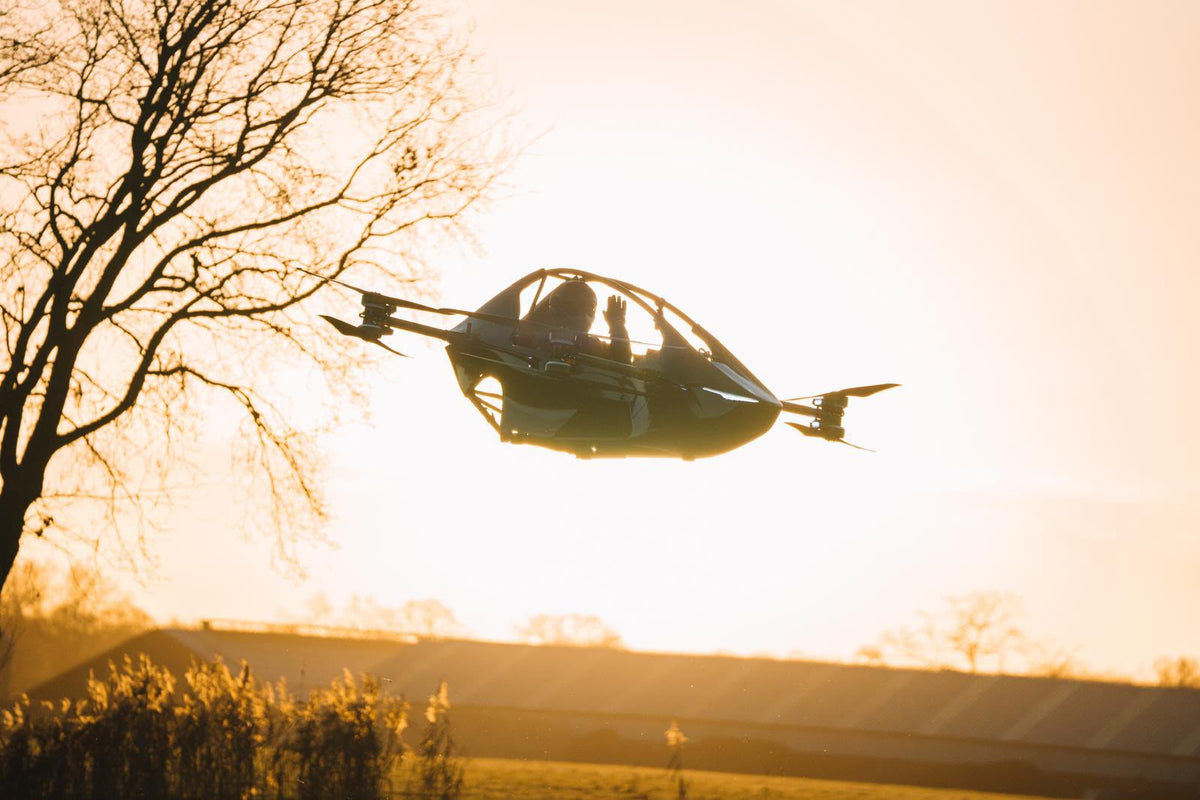

Step into low-altitude flight with the AERO 1, an ultra-light electric vertical takeoff and landing aircraft built on a four-axis coaxial eight-rotor configuration. Designed for sightseeing, private recreational flight, demonstrations and low-altitude technology testing, the AERO 1 pairs a folding airframe with serious engineering: triple-redundant flight control, RTK positioning, and a full suite of automated safety systems that most aircraft in this class simply don't offer.

Product Overview

• Manufacturer / Brand: TheArsenale Aero
• Product Name: AERO 1
• Model: TA01
• Category: Ultra-light electric VTOL aircraft

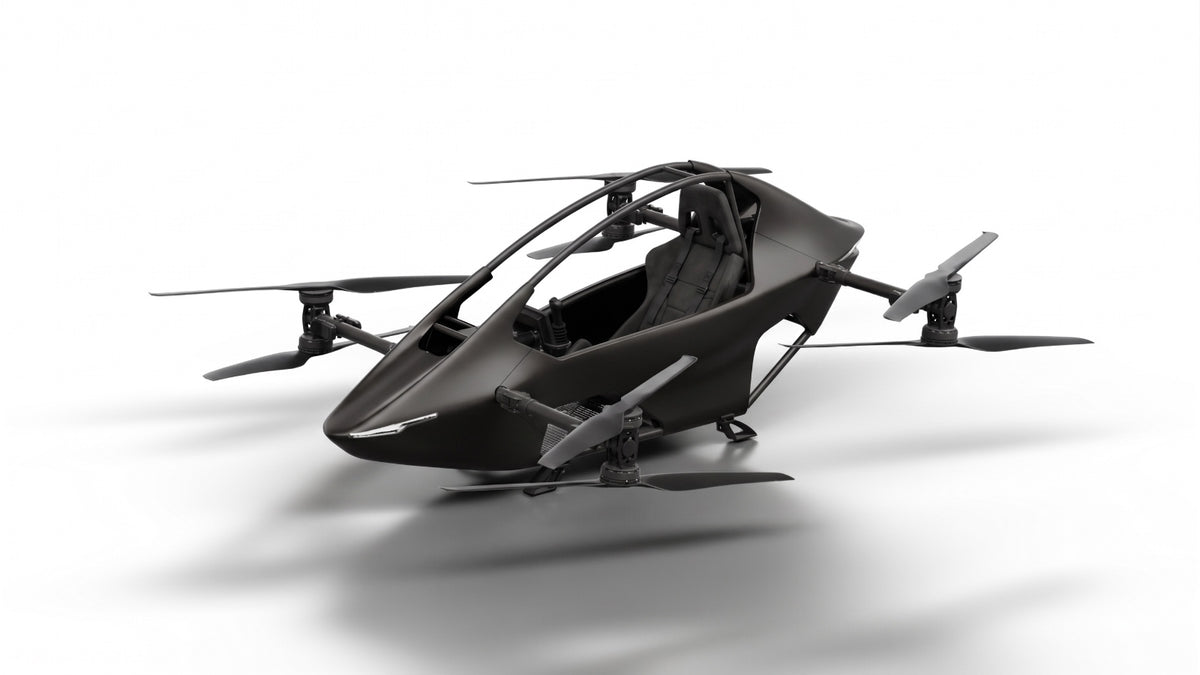

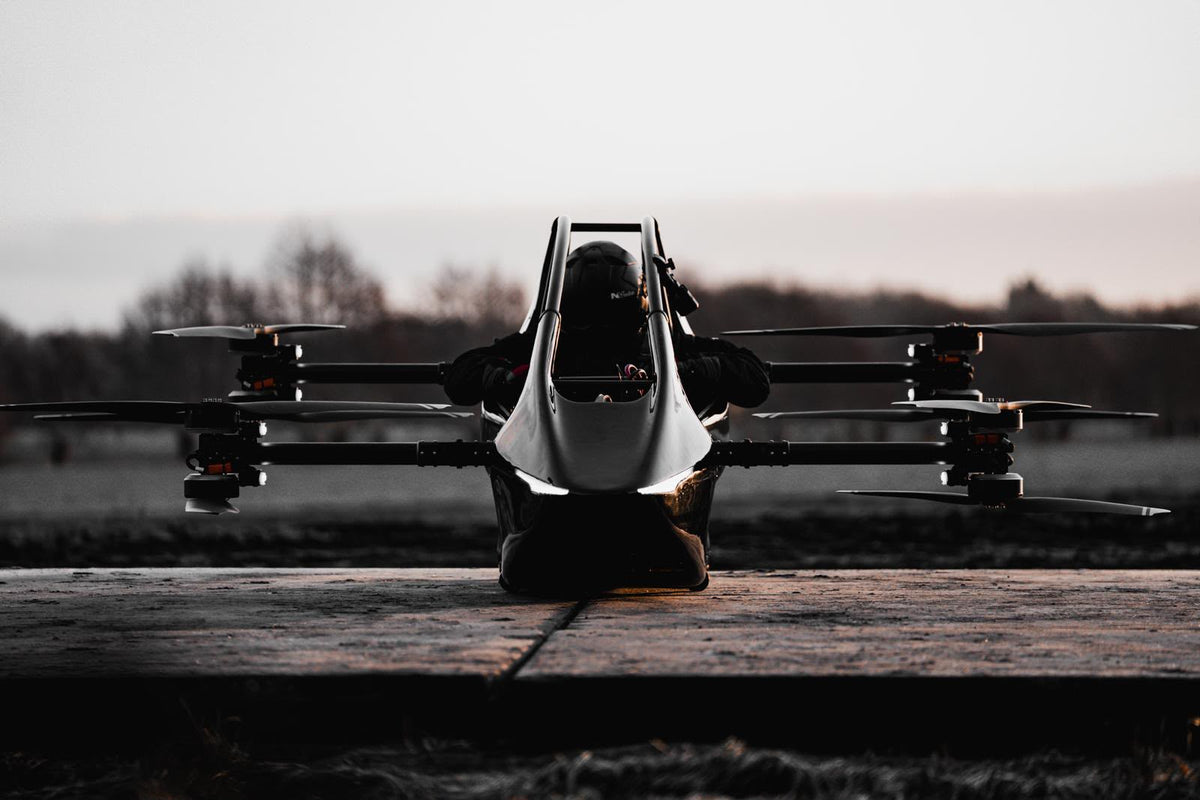

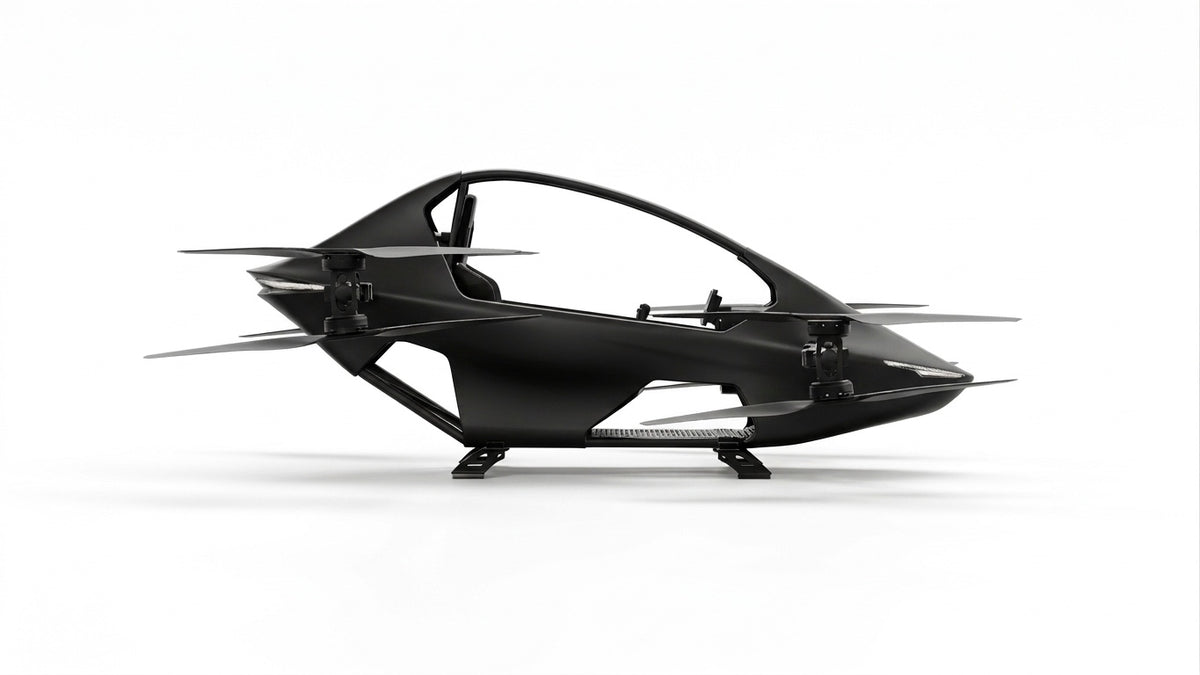

• Configuration: Four-axis coaxial eight-rotor

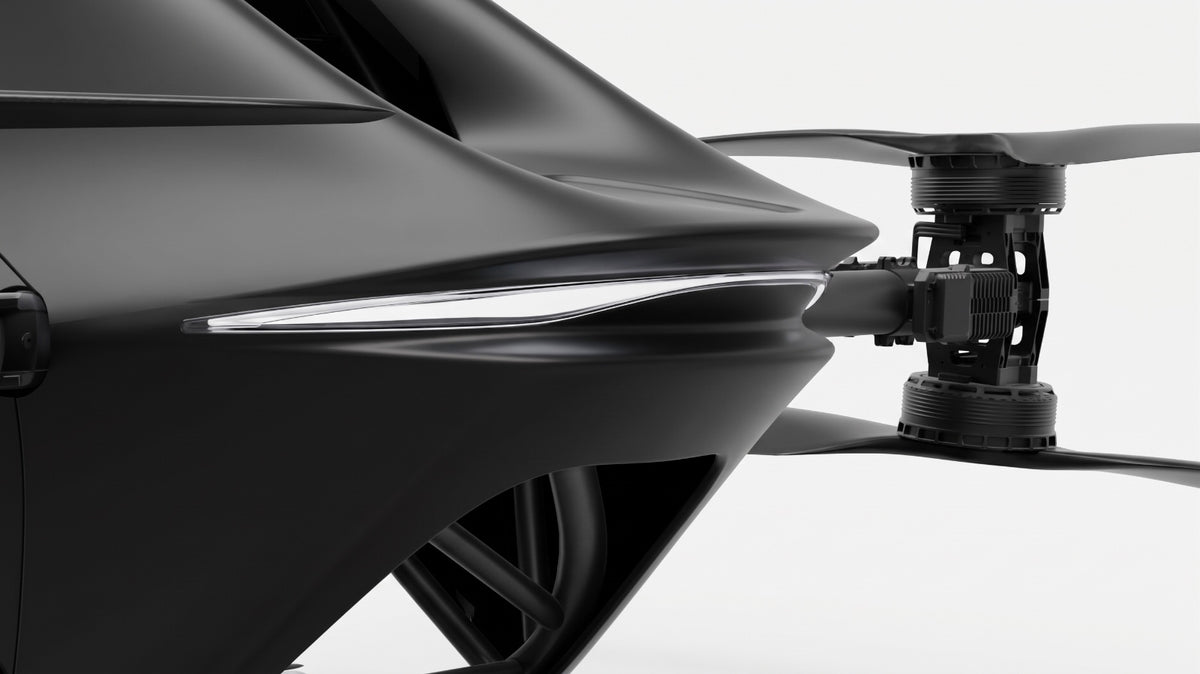

• Accessories: External lighting system (as specified)

Airframe (Plus variant)

• Empty weight: 105-116 kg
• Maximum take-off weight: 220 kg
• Folded dimensions (L x W x H): 3.0 x 1.1 x 1.1 m
• Unfolded dimensions (L x W x H): 3.0 x 3.8 x 1.1 m
• Maximum wheelbase: 1,820 mm

Flight Performance

• Maximum level speed: 70 km/h
• Maximum true flight altitude: 600 m
• Maximum flight radius: 35 km
• Maximum flight time: 30 minutes
• Hovering accuracy: within 2 m

Control & Positioning

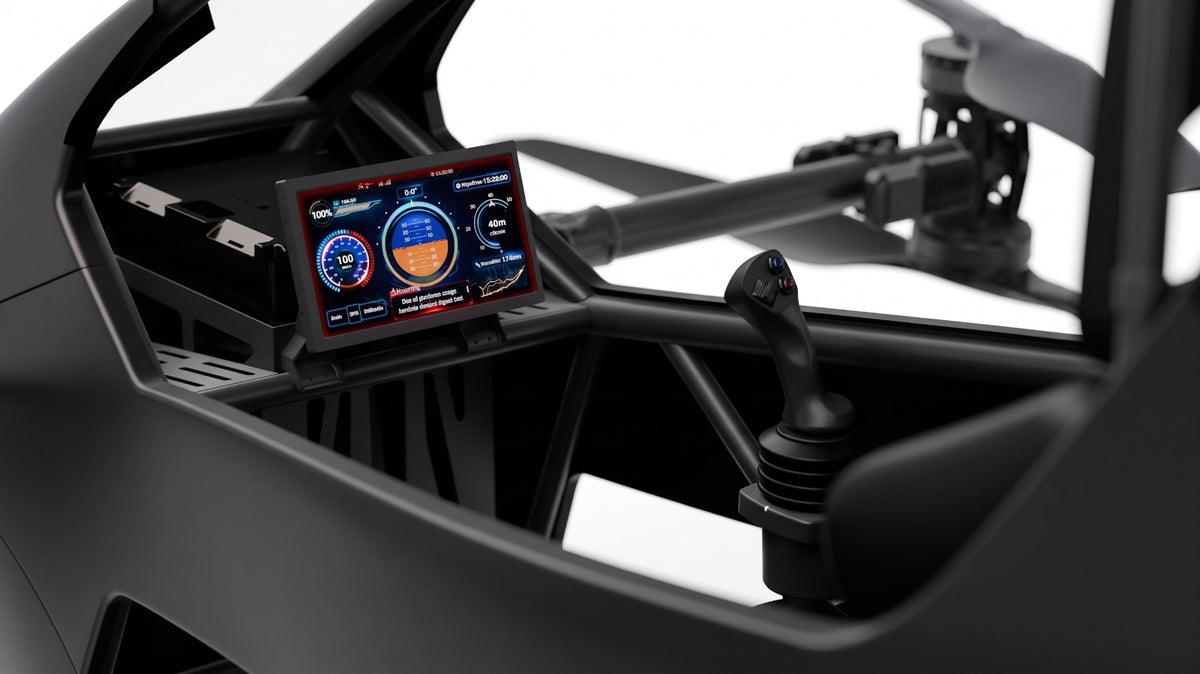

• Handheld remote, remote monitoring platform, or ground station operation
• Remote control: model X-A16, 16 channels, 2.4 GHz with new FHSS frequency hopping, 272 x 183 x 94 mm, 1,043 g
• RTK positioning antenna (2.4 GHz) plus a general-purpose GNSS module (1575.42 MHz) for precise positioning

Built-In Safety

• Automatic emergency activation if attitude, motor output, or flight control redundancy is compromised, with an emergency landing button always available
• Automatic return-to-home with obstacle-aware rerouting and a safety hover before landing
• Loss-of-control return protocol if the signal drops for 5+ seconds
• Two-stage low-battery return with visual and audible alerts
• Configurable electronic fencing (circular or polygonal, soft warning or hard boundary)
• Two-stage deceleration landing with cushioned fuselage pads

Operating Limits

• Maximum flying/operating speed: 70 km/h
• Maximum wind speed: 6 m/s
• Maximum take-off altitude: 2,000 m
• Operating temperature: 5 to 50°C
• Minimum crew: 2 operators
