Stratolaunch is the world's largest airplane by wingspan, a record-breaking aircraft built by Vulcan Aerospace under the vision of Microsoft co-founder Paul Allen. With a wingspan of 385 feet (117 m), it surpasses even the legendary Hughes H-4 Hercules, and was engineered not to carry passengers but to launch rockets directly from altitude, delivering small satellites to low Earth orbit with unprecedented efficiency.
What Is the Stratolaunch and Why Does It Matter?
Stratolaunch is a twin-fuselage air-launch-to-orbit platform developed by Stratolaunch Systems, a company founded by Paul Allen through his Vulcan Aerospace venture. The concept behind it is simple but powerful: instead of launching rockets vertically from the ground, you carry them to 35,000 feet aboard a massive aircraft, then drop and ignite them in the stratosphere. This "air launching" method eliminates the need for complex ground infrastructure and allows launches from almost any location on Earth.

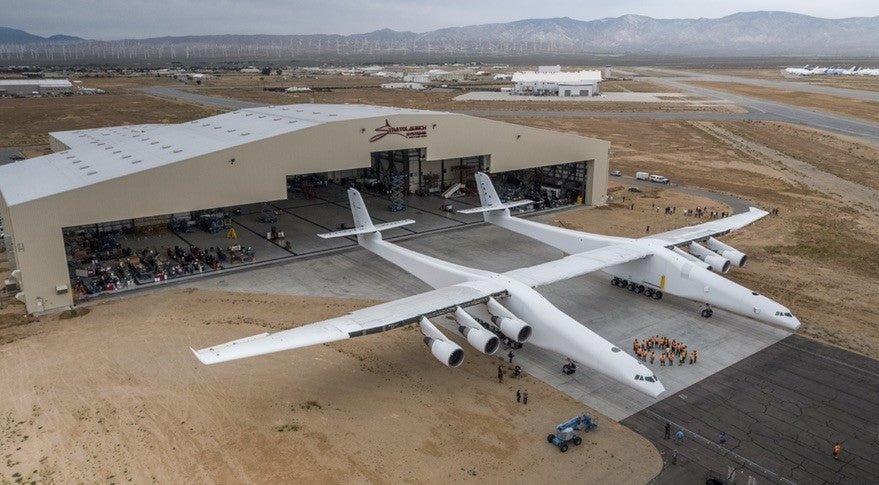

When it rolled out of the hangar at the Mojave Air and Space Port in California's desert for the first time, the scale of the aircraft shocked even the engineers who built it. The country had to issue special construction permits just for the scaffolding required during its assembly.
Stratolaunch Specs: A Machine Built at an Extraordinary Scale
The numbers behind the Stratolaunch are almost surreal. Its wingspan of 385 feet spans a greater distance than any other aircraft ever flown. Each of its twin fuselages measures 238 feet in length. The aircraft sits on 28 wheels across its landing gear and is powered by six jet engines salvaged from Boeing 747s, providing the raw thrust needed to get 1.3 million pounds off the ground at maximum takeoff weight.
Dry weight sits at 500,000 pounds. Fully fueled and loaded, including crew, payload and rockets, the Stratolaunch can reach 1.3 million pounds. To put that into context: the Pegasus XL rocket it was designed to carry weighs around 50,000 pounds on its own.
How Does Air-Launch-to-Orbit Work?
The Stratolaunch was built in partnership with Northrop Grumman's Pegasus XL rocket, a vehicle designed specifically for air-launch deployment. Once the Stratolaunch climbs to its operating altitude of approximately 35,000 feet, the rocket is released from the belly of the aircraft. It falls briefly, ignites its own engines, and accelerates into orbit under its own power. The payload, typically a small or medium satellite, is delivered to low Earth orbit (LEO) without a single launch pad required.
According to Paul Allen, this model is significantly more cost-effective and flexible than traditional vertical launches. It also opens the door to rapid, on-demand access to space, something the commercial space industry has long sought.
Testing, First Flight and the Legacy of Paul Allen
Stratolaunch completed extensive ground testing at the Mojave Air and Space Port before its historic maiden flight on April 13, 2019, just months after the passing of Paul Allen in October 2018. The first flight lasted approximately two and a half hours and reached a speed of 189 mph at 17,000 feet. It was a milestone moment not just for Stratolaunch Systems, but for the entire commercial space sector.
Allen's vision was to make space access as routine and affordable as possible, removing the enormous overhead of fixed ground infrastructure. The Stratolaunch program represented one of the most ambitious private investments in aerospace history, and the aircraft remains a one-of-a-kind feat of engineering. For more context on its world record, see the CBC News coverage of the first flight.
